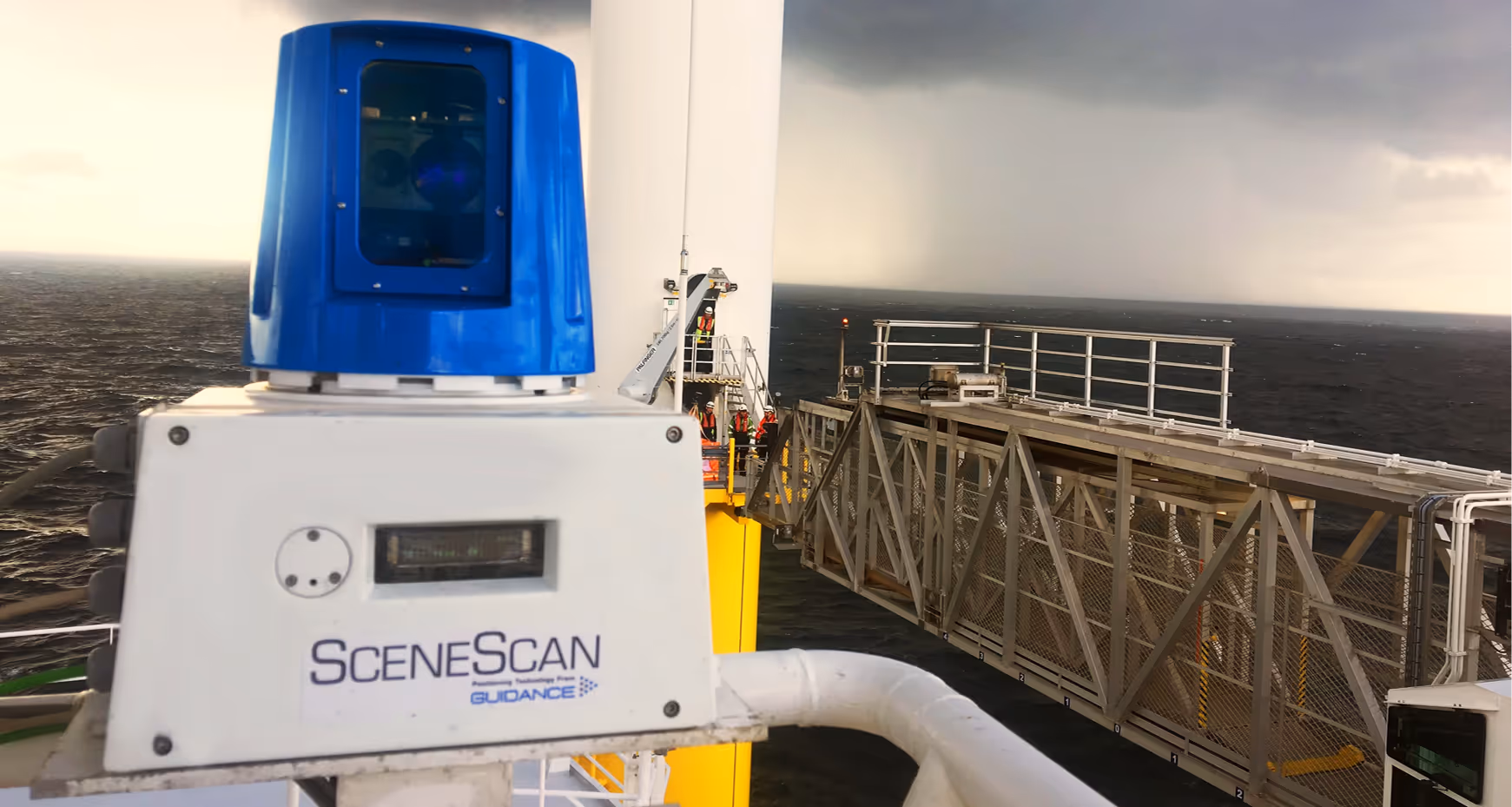

The SceneScan sensor is a sensor that doesn’t use reflector targets. When approaching a scene, it scans the environment and tracks. SceneScan provides tracking information relative to natural or man-made structures within the sensor field of view. It tracks by matching its current observation of the scene against a map generated from previous observations of the scene.
Benefits
- Additional independent DP reference sensor
- No targets required
- Designed for close proximity
- Automatic reference point selection
- Maximum uptime from rotor design
- Modular sensor design aids in-vessel servicing
- No prisms, no maintenance
- Robust construction - high performance in all weather conditions and sea states
Technical Features
- Range operation from 10m to 200m
- Position off the whole scene, not a discrete target
- Full 360º scanning
- Class 1M laser classification
Applications
SceneScan is suitable for applications which use fixed structures such as:
- Platform, offshore and multipurpose supply vessel operations

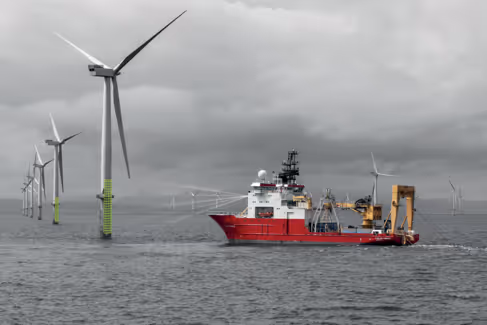

- Wind farm service operation vessels (monopole mode)
- Jack-up rigs
- Accommodation barge operation
- Crew boats station-keeping
- Heavy lift activities
- Dive and ROV support
- Short range operations
SceneScan is also suitable for DP applications mobile structures such as:
- Track and ship follow
Targetless Technology

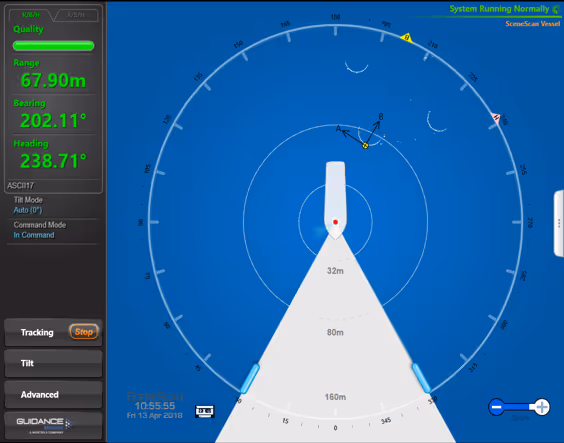

Since there is no physical target, a virtual reference point is created. Range, bearing, and heading are measured from this virtual reference point
- Uses simultaneous location and mapping (SLAM)
- Automatic reference point selection

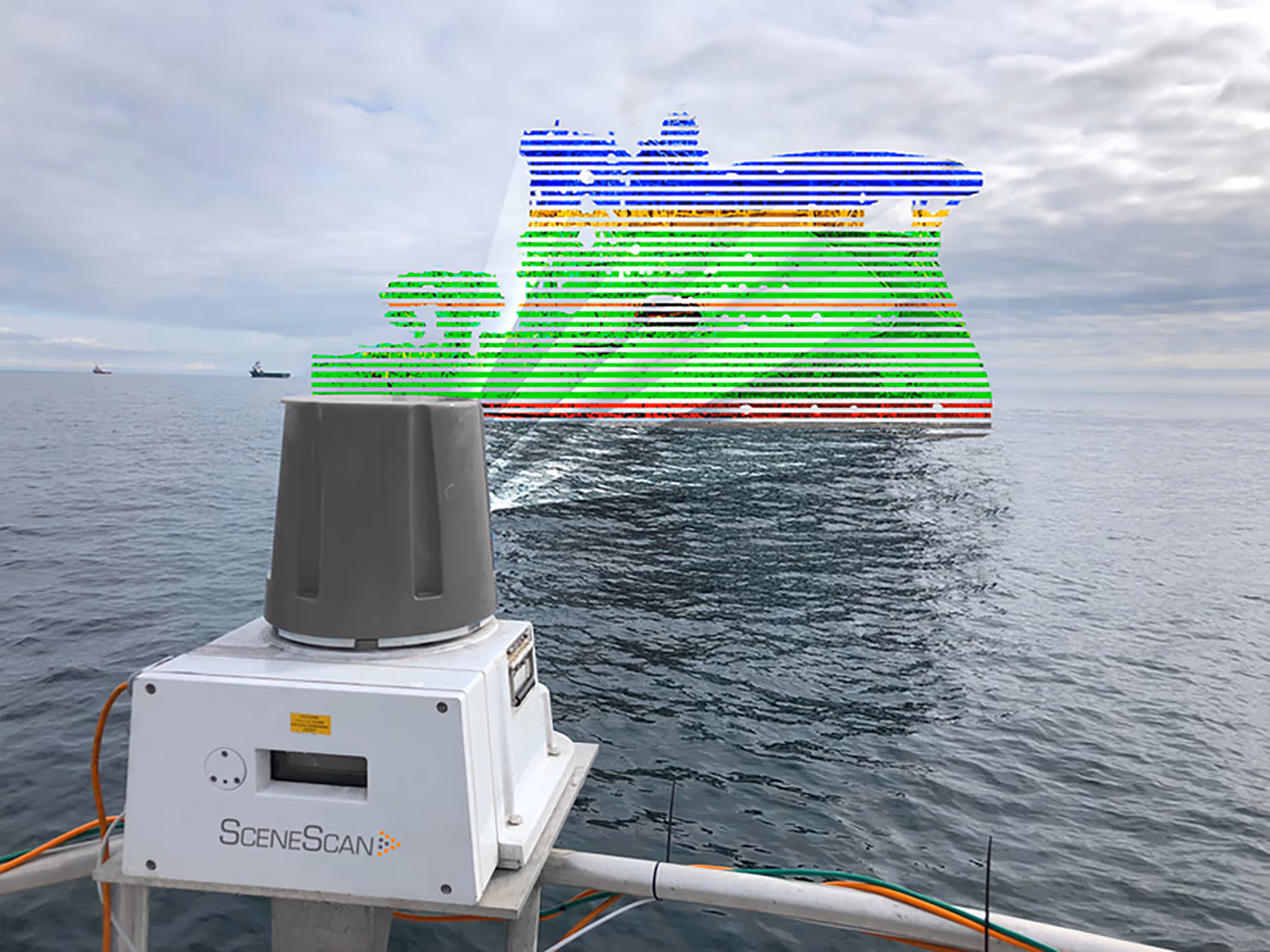

How It Works
- Looks at surroundings
- Creates a 3D Scan
- Selects and tracks off 2D slice
