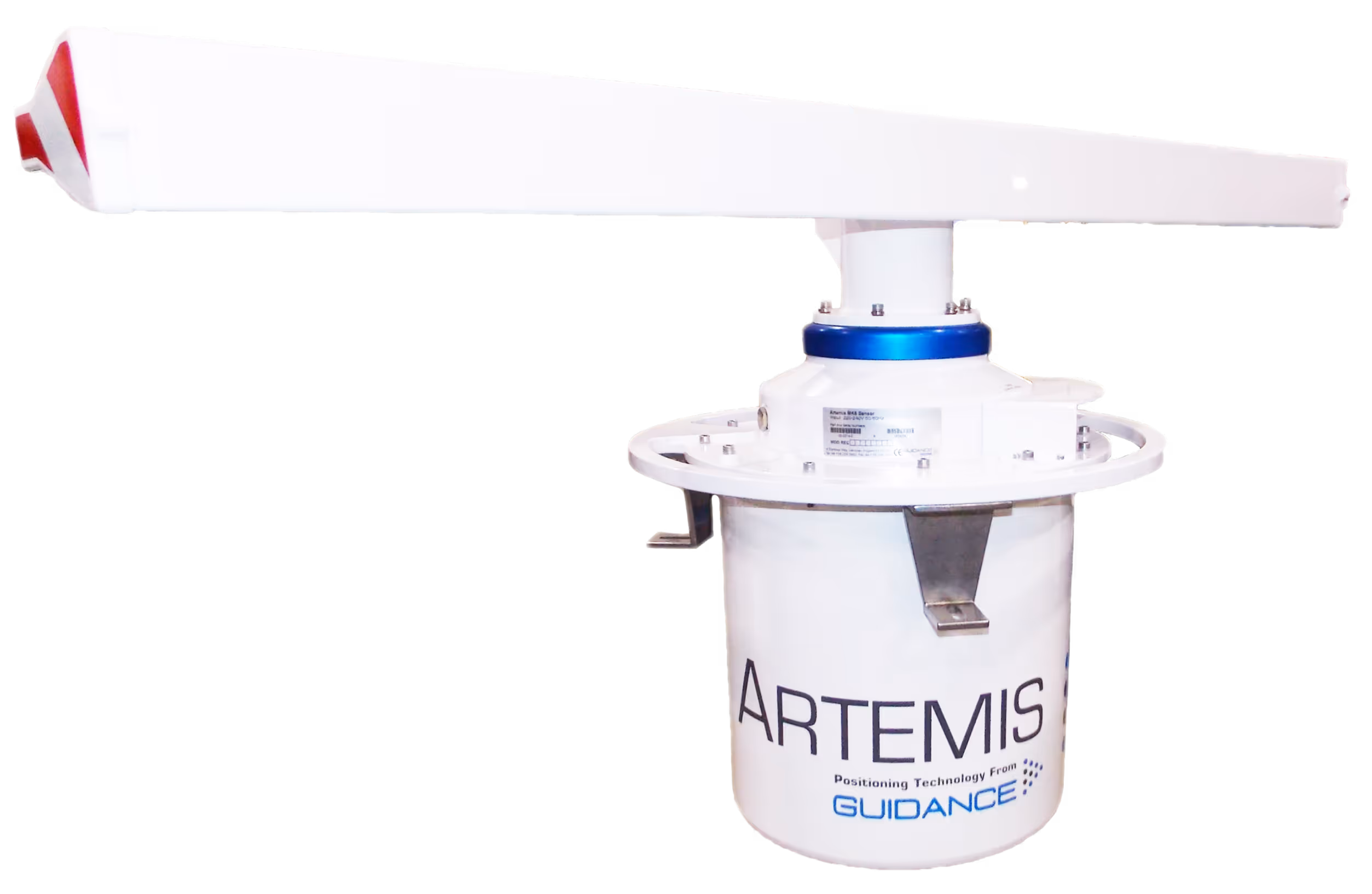

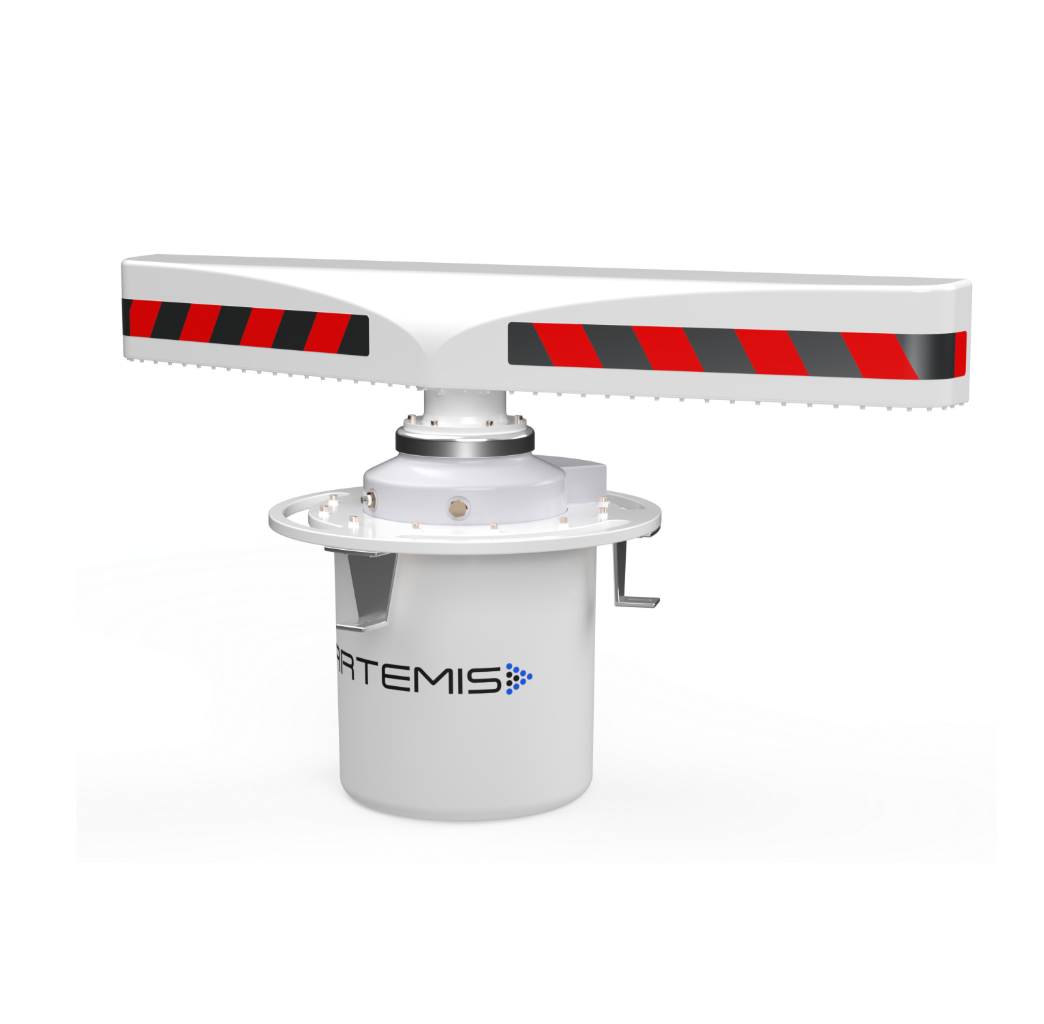

The Artemis system is a microwave position reference sensor for use in long range marine Dynamic Positioning (DP) applications. The position is determined by measuring the absolute distance and the relative angle between two Artemis stations. It is typically used in the offshore operation of offloading and transportation of oil between shuttle tankers and FPSOs. Mk6 builds on over 30 years of Artemis pedigree, combining proven microwave antenna tracking techniques with a new innovative Dashboard and commissioning tool.
Benefits
- Operating range up to 10km
- All weather operation
- Automatic beacon and sensor acquisition
- Overcomes GNSS scintillation
- Interchangeable antennae and antenna units
- New Dashboard control
- Stations and beacons compatible with legacy Mk5 systems
Technical Features
- Range operation from 10m to 10,000m
- Full 360º scanning
- Interfaces to all modern DP systems
- RF Immunity – Resistant to S and X band when installed correctly
- IP66 certified
Applications
Artemis is suitable for applications which use fixed structures such as:
- Shuttle tanker loading
- Hydrographic and seismic servey
- Track and ship-follow
- Pipe and cable laying
- Dive support
How It Works
- Fixed Station - Artemis sensor is installed on the FPSO
- Mobile Station (Position Determined) - Artemis sensor is installed on a shuttle tanker equipped with a DP system
- Artemis Dashboard - Software is used by the DP Operator to control the Artemis sensor. It runs on a marine computer installed on the vessel’s bridge.
